Creating an Adaptive A.I. for Games Using the Adaptive Resonance Theory

Source code – Unity, C#

The final part of our 4th Year of Computer Games Technology was the 2015 Abertay Showcase.

I was honoured for my project to be chosen for the Yoyo Games Prize for Applied Theory.

Over the weekend I was present to talk over my project, and it was a great experience.

During the initial stages of this project I was considering what engine (if any) to use. As I felt that a 2D demonstration would be sufficient, the idea of writing the whole project in C++ with the aid of a graphics library was tempting. My decision to use Unity was based both on my previous experience with it, and a lack of experience with Unreal. During the creation of the first prototype I was quickly forced into using a full 3D scene, to take advantage of Unity’s inbuilt path finding and allow true ray-casting for line-of-sight checks.

During development Unity 5 was released along with the previously Pro only feature of real-time shadows. Initially this was only added for the aesthetics of representing the A.I.s sight, and perhaps moving more towards the look of Metal Gear Solids Soliton Radar.


During the showcase it became clear that visually representing sight through lights and the shadows they create was giving people a clear understanding of the games primary mechanics. Though previous 2D concepts had seemed clear to me, it would have been far more to difficult to explain. The additions of the 1st person view and mini-map were also positively received.


Programming a functioning ART Network provided a significant challenge throughout the semester, even though I was unable to implement a functioning ART2 network – I was able to modify the existing ART1 implementation for this project.


A compromise that had to be made later on was the design of the ART networks input vector. Initially I had hoped to implement a system which could accept a variable length input and re-order it to better suit any matching data. The ART1 implementation would not allow for this, to do so would have required the removal of parts of the system that define it as an ART Network. Therefore I was forced to design a fixed input structure to suit this projects implementation.


The previously built DBSCAN algorithm was added to allow the A.I. to search the environment. The test scene contains a list of positions which the A.I. must search, once every location has been visited the list would be refreshed. Each position contained a set radius – which would be used to generate a DBSCAN of the remaining area. This search would highlight any clusters as new navigation points to be visited before the A.I. can move on to the next area.


As the final build requires a 360 controller, this video demonstrates the main mechanics of the project.

AR Tower Defence

As our year at Abertay was the last to work on the old PlayStation2 Linux Devkits, Applied Game Technologies was a last chance work on the new Vita Devkits. The purpose of this module was to choose either Augmented Reality or Stereoscopic 3D, and build a small demonstration game application to aid in discussing innovation within the chosen field.

This project was in C++, using the Abertay Framework for PlayStation Vita.

I chose to explore the idea of creating an RTS style game that would utilise Augmented Reality. The main concepts I wished to show where that of the device acting as a viewport into the game world, and interacting physically with this world to control the units.

In this demonstration application the player has to look through the PSVita to get a view of play area, and position their three towers correctly to destroy incoming enemies.


This implementation was rather difficult to use – holding a Vita in one hand while using the other hand to move the markers around. Key issues around this technologies reliance on marker identification such as limitations with tracking range, speed and stability were encountered – with possible solutions suggested.

The focus of this module was however to demonstrate how this technology could be used for further innovation. I suggested that the current movement towards headset based AR technologies coupled with gesture recognition could provide a fantastic opportunity for innovation within the RTS genre. Such upcoming technologies could allow RTS games to played within your own environment, much like a physical tabletop game – relying on user gestures for interactions rather than controllers or markers.

Final Test Environment

During the final integration process, it was necessary to finalise the details of the test environment. Structurally mostly unchanged since the conversion to Unity 5, the final details remaining represented exactly what the A.I. would be capable of ‘seeing and hearing’.

As a combination of the previously pitched ‘static’ sound emitters, I decided to place four static ‘decoys’. The player can only activate one at any time, and only when with a certain proximity – the button to activate is shown over the decoy if it can be turned on. This will represent both an audio and visual contact to the A.I. – continuously broadcasting an audio contact, and a visual contact when within the A.I.’s line-of-sight (now represented by blue arcs). The decoy stays active for a set amount of time, and is visually represented as a pair of rotating orange spotlights.

Decoy1 Decoy2

From the beginning the idea of a player launched contact had been planned. This has been implemented in the form of a green flare – launched directly from the player in the chosen direction. The range is fairly short, the player can throw over the ‘low’ (lighter grey obstacles), but not through anything higher. Representing a player-like decoy, the flare also both functions as a constant audio and visual contact – lasting a set amount of time, and only one allowed active at a time. It however is thrown, and rolls – as such is capable of movement like the player.


The final added piece of functionality was to allow the player to crouch – this will allow the player to both break LOS using low obstacles, and move silently (but slower than running). The idea being to allow some room for a player to duck behind an obstacle and break contact with the A.I. At this time I’m undecided whether I should allow the player to throw flares while concealed behind a low obstacle. It remains at this time, game play balance was never a focus for this project – just the possibilities of messing with the A.I.

Crouching1 Crouching2

Adaptive Resonance Theory – ART2

After a rather significant reworking the modified ART1 network now appears to function correctly – I call it ART2 but in reality this network is far closer to its binary cousin.

Importantly the test data used represents actual vector3 positions from within my test environment – 12 floats representing 4 vector3’s – the first two allocated for visual contacts, the second two for audio contacts.

Vigilance Threshold = 0

As expected all six patterns are unique – even the first two pairs have slight differences (this was deliberate for the test data).


Vigilance Threshold = 1

The magnitude of the difference vector of the first two pairs was below 1 – these have now been accepted as members of that class and the initial node retrained (with the small differences its hard to see).


Vigilance Threshold = 28

It takes a rather high Vigilance of 28 for the final third pair to be considered a match (the x component of the second vector3’s sign was different). In practice a Vigilance this high would not be useful for my application.


The losses:

– The concept of using the dot product no longer works – vigilance is now measured by the magnitude of a difference vector between the input and the exemplar. Without the dot product this involves bypassing the normal ART architecture when a untrained or blank node is selected. In this implementation the difference vector is forced to 0’s (zero magnitude) to force a match.

– The feed-forward weight scaling equation has been altered to: value / ( 1 + the magnitude of the input vector ). This allows for negative scaling but this seems to still function correctly – same signs will result in a higher weighting, differing will lower it.

Adaptive Resonance Theory – ART 1.5ish…

It turns out descriptions like ‘subtle changes’ or ‘more complex set-up, simpler equations’ are somewhat lacking when comparing ART1 and ART2 networks. The changes involved are significant (mostly within the F1/Input/Comparison layer), with some 15 equations including ODE’s.

I think this shows that my current ART1 network is more than likely significantly less complex than the true model – as there is only one major equation (the feed-forward weight scaling equation) along with the dot product.

As I believed the ‘true’ ART2 architecture was far too complex, I have been pursuing modifying my existing ART1 network to accept real values. Once completed I will detail the required ‘modifications’ (hacks) required, but so far the network will accept real inputs – there is no comparison at this point (0 vigilance) – all 5 patterns are classed as new exemplars.

Even this ‘simple’ step required significant modification of the ART1 implementation – also perhaps revealing some errors within its logic.


This test data has been designed to have two sets of similar data (the first two pairs) and a final pair with some more significant differences – to test the effectiveness of the vigilance test.

In the above image:

– white nodes represent 0’s – as the input vector has fixed length, any gaps must be filled

– blue nodes have negative values (both feedback and exemplar)

– red nodes have positive values

For non-zero nodes, the size of the sphere is the value of the feed-forward weights trained to that node – in this case they are the normalised values of the exemplar.

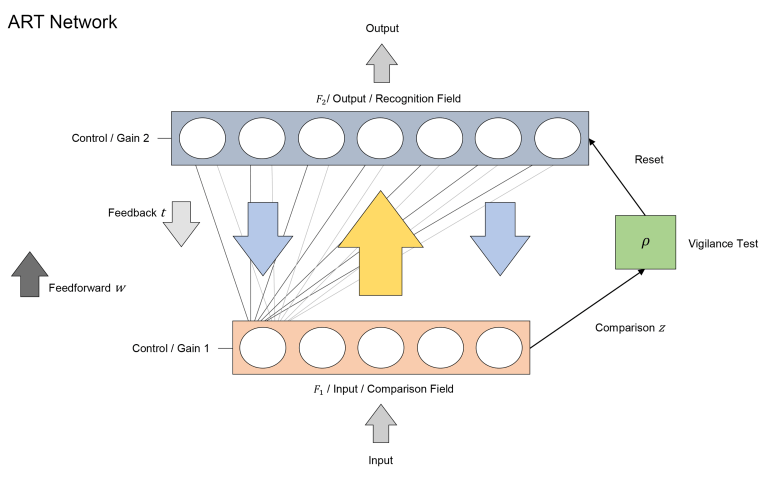

Adaptive Resonance Theory – ART1 Network

These screenshots show a visual representation of the output from a trained ART1 network.

Creating a functioning ART1 network is the first step towards implementing a suitable variation within my game environment, this will likely be a modified version of an ART2 network. The key difference between ART1 & ART2 is that ART1 only accepts a binary input, where ART2 functions with real numbers.

These initial test are based around a fixed set of binary input data:


The networks outputs match those ran at vigilance thresholds of 0.3 and 0.8 – with white nodes being inactive (0), red nodes being active (1) and their size is equal to their feedforward weighting.

0.3Vigilance 0.3TestResults0.8Vigilance 0.8TestResultsThis version of the network already features some improvements over the standard model – primarily it features an extendable output node structure (recognition field). So the only two variables required for operation are the size of the test data arrays (number of binary digits – which is fixed thereafter), and the vigilance threshold value.

The recognition field is initialised with a single output node (neuron), and after this ’empty’ or ‘default’ node is trained with an exemplar pattern  – a new output node is added to the field.

This limits the network by the increasing size of the recognition field and increasing time to resonate between it and the comparison field.

Currently the comparison (input) field is fixed after the network is initialised. As the size of this field is used within the feedforward weight scaling equation – it looks like this possible cannot change.

Unity 5 Upgrade – Shadows

Work still progresses slowly on my ART implementation (more posts will follow), but I decided to quickly look at upgrading the project as Unity 5 released at GDC. One or two minor changes were required with the NavmeshAgent, but otherwise a simple transition.


Previously the option to render shadows had been restricted to Unity Pro licences only – no longer with Unity 5!


As I do not intend to further the graphics of this application, the addition of shadows and new light sources really enhances the scene. The red light here pulses like warning or alarm, while the white light flickers on and off.

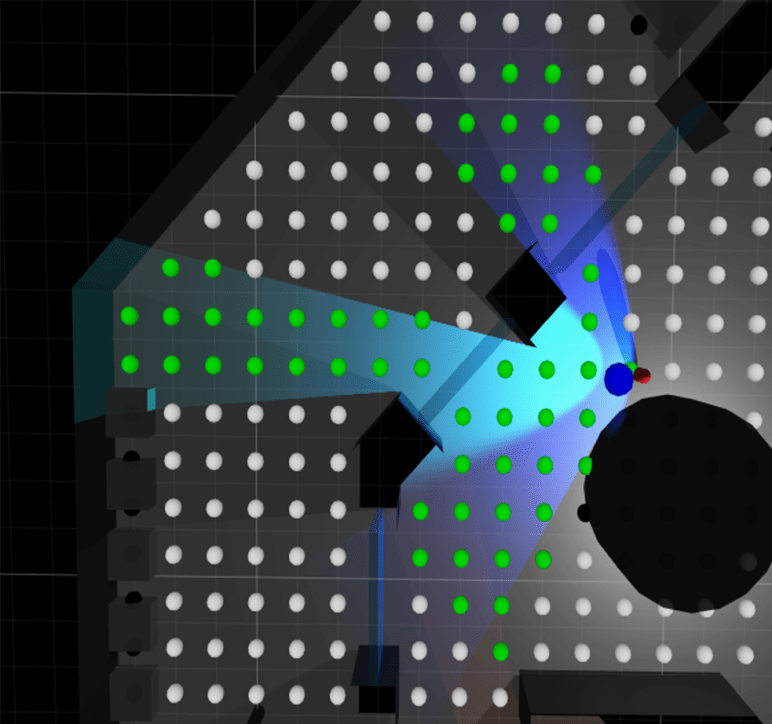

The main attraction however was the blue cone light – which nicely represents the A.I.’s cone of vision, with areas in shadow correctly showing blind spots behind obstacles.

Clustering Working?

Latest implementation appears to be clustering correctly under given parameters:

– the number of ‘neighbours’ parameter appears to be one higher than expected, the images here are set at 4…

– the minimum distance between neighbours is 1.5f – this is expected as the search nodes are arranged in a 1.0f grid (save a few incorrectly placed tiles

– there does appear to be an issue with noise allocation in this implementation, a final check after the main DBSCAN loop is required to collect some missed nodes


This shot uses the same parameters but over a more complex area, again it appears to identify the search area correctly – including 3 separate clusters (each having their center shown by the blue sphere), and 10 ‘noise’ nodes.


If this currently implementation proves robust enough it will form the basis of the A.I.’s searching function:

– the DBSCAN will return two lists (clusters and noise)

– each will be given a weighted priority based on its size (always one for noise) and the distance of the A.I.’s path to its center

A new list is formed of destinations and weights – allowing the A.I. to search this area.

Larger (clusters) which are closer will have the strongest weighting.

The final thought is not simply for the A.I. to work through this list in order, but for it to choose randomly between them biased by their weighting – the largest nearest cluster would be the logical and most likely outcome, but there would be a small chance of another being chosen.

DBSCAN – Density-Based Spatial Clustering of Applications with Noise

I have been working implementing a suitable search method for nearly two weeks at this point. After rewriting and improving some of the overall area detection code, the DBSCAN implementation almost looks complete.

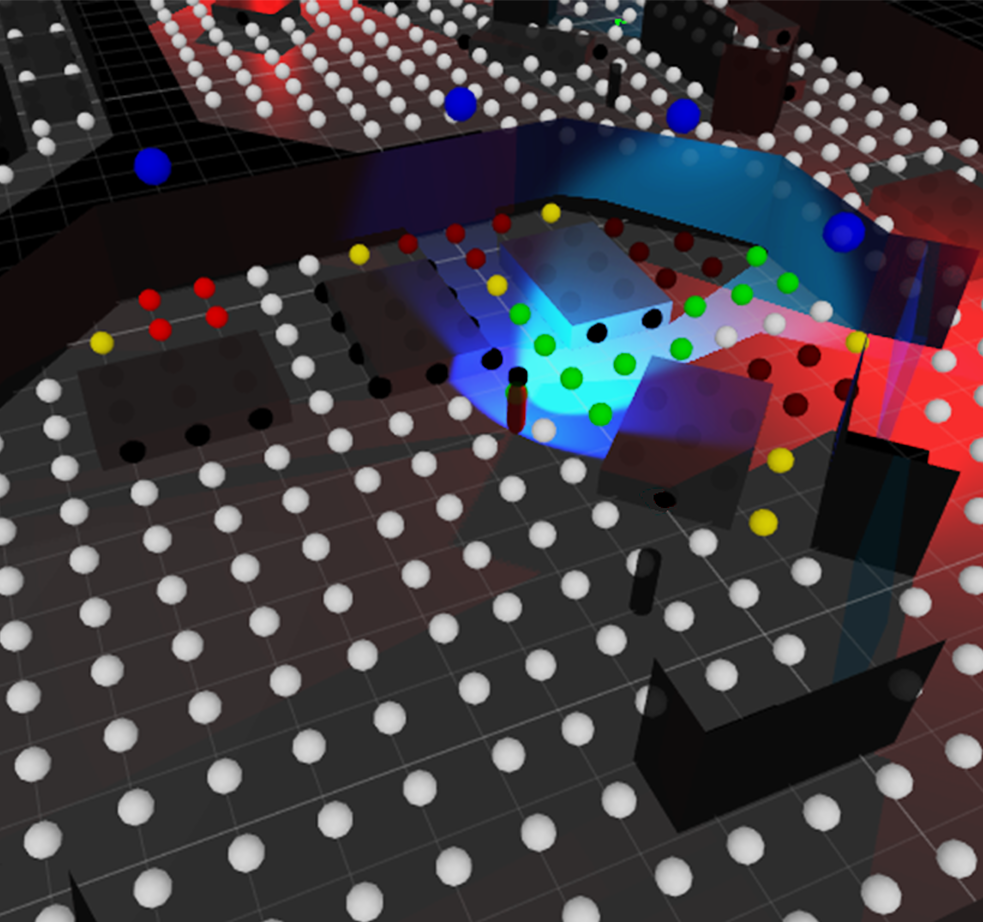

Initially noise (yellow) nodes were being identified correctly, but clustering was definitely wrong. I have used colours here to attempt to debug the numerous clusters being generated (the actual number was often twice what the colours show).


After a fair amount of heading banging and rewriting this latest implementation appears to be giving pretty decent results, with one dodgy looking noise node to the top of the single cluster, and a rather distant looking cluster member to the bottom.


Here the algorithm has (mostly) correctly identified two main clusters, with another dodgy looking noise. Those two rogue nodes up top are still an issue.
